LDN1/LDN2
LDN1/LDN2
A proven, scalable data centre campus in a strategic London location
Request a brochure (PDF)
Just west of London, Gravity Edge LDN1 and LDN2 sit on a secure 5.4-acre freehold campus in Camberley.
Four purpose-built halls deliver 40,000 sq ft of white space, with 15–20 MW of capacity ready to deploy, whilst LDN2 offers HPC pods with 2 MW capacity. Built for the power-hungry demands of AI and modern compute.
The facility has a decade-long track record. A tier 1 financial institution has run mission-critical operations from two halls for over a decade.
Proven resilience, ready to scale.
Connectivity
Sub-1 ms latency to London Docklands, Slough, and City hubs, with direct access to London’s fibre ring for connectivity to cloud providers and carrier aggregation zones. The performance and reach of a metro-connected data centre, with significantly lower costs than central London.
Power and scalability

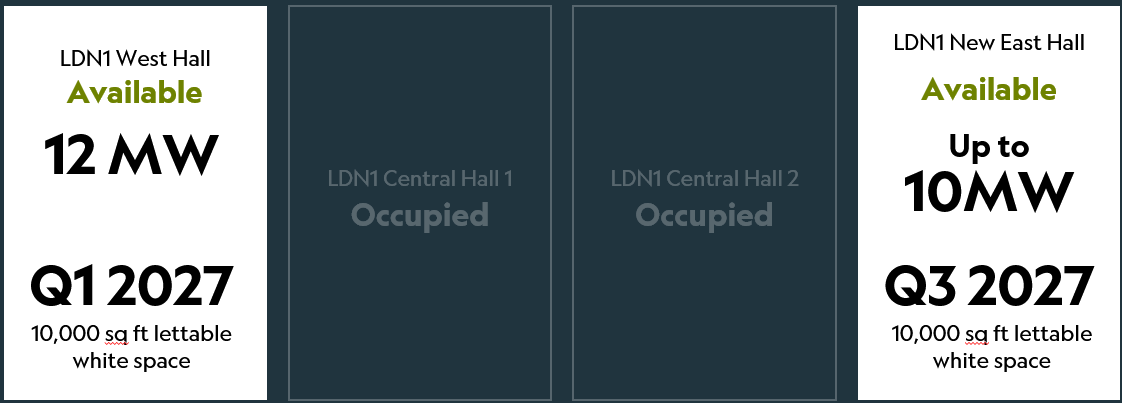

East and West Halls
Available for immediate fit-out, offering contiguous multi-MW capacity — one of the few such opportunities in the UK market.
Designed for enterprise flexibility
Rack density, cooling technology, lease structures and SLAs — all tailored to your requirements.
Future campus (2030+)
Planned expansion to deliver up to 120 MVA of power capacity, supporting the next generation of digital infrastructure.
Operational excellence
LDN1 is built to tier 3 enterprise-grade standards with tier 4 heritage, and has maintained an incident-free operational track record for over a decade.
The on-site team has been retained in full, ensuring continuity of expertise and deep facility knowledge. CBRE has endorsed the site as ‘a flagship of operational excellence’.
Behind it all: BlackRock, the world’s largest asset manager, and Digital Gravity Partners, a specialist digital infrastructure investor and operator with proven experience at scale.
LDN1/LDN2 specification
Site overview
Location
Camberley, West London edge (<1 ms latency to all key London hubs); 51 ° 20’ 0.2” 0° 45’ 58.1” W 5
Land area
5.4 acres freehold campus
Gross internal area
145, 585 sq ft (13,525 sq m)
Critical white space
40,000 sq ft
Design standard
Tier 3 equivalent, concurrently maintainable, enterprise-grade
Current tenancy
2.5 MW leased to tier 1 financial institution
Performance & scalability
Uptime design
99.999% availability, concurrently maintainable across all major systems
Available capacity
15–20 MW in LDN1 East and West Halls; 2 MW in LDN2 (pods)
2030+ campus
120 MVA
White space
Hall format
Powered shell, suites or cages
Rack voltage
230/400v, 415/240v, 48v DC or 380v DC on request
Containment
Hot/cold aisle, RDHx/D2C options on request
Cooling (configurable)
Density
West Hall: air containment 20–30 kW /rack, RDHX and in-row options for high-density available; East Hall: custom liquid cooling
Plant
Dual chilled-water loops, economiser chillers, modular pumps, and pathways for plate HX/CDUs for liquid
Control & PUE
BMS integrated, target <1.4 air and <1.3 liquid assist
Connectivity
Meet-me-rooms
Dual MMRs providing diverse carrier entry; expandable for additional tenants/halls
Latency
<1 ms round trip to London Docklands, Slough and City hubs
Fibre network
Dense regional fibre with onward connections to major cloud on -ramps and IXPs
Power infrastructure
Utility feeds
Dual 11 kV LD1, single 11 kV LD2
UPS topology
Static or rotary; Li-ion or VRLA. Distributed architectures to match tenant specification
Generators
N+1 minimum, expandable, HVO-ready, dual bulk tanks w/72hr autonomy at full load, on-site load banking
Power quality & metering
ISO-metered A/B, optional rack level metering
Distribution to rack
Dual-path A/B via overhead busway or customer-specified A/B power whips (overhead/underfloor). Metered tap-offs or PDU feeds available. Designed for air or liquid-cooled high-density racks
Security & monitoring
Access control
24×7 staffed security, dual with anti-ram bollards
CCTV coverage
Full internal and external surveillance including data halls, entrances, and perimeter
Fire detection & suppression
VESDA early smoke detection; Inergen/IG-55 inert gas suppression in halls and plant rooms
Monitoring systems
Trend BMS for HVAC control and performance optimisation; E-TEC SCADA system for M&E plant, switchgear monitoring
Building site & features
Floor system (configurable)
Standard: 1.2m raised floor. Optional: partial or full raised-floor removal to create slab bays for high-mass/high-point load racks
Roof
Kalzip double-pitch, acoustic treatments; maintenance access
Loading & logistics
Dedicated staging areas, truck dock, secure delivery bay
Office & ancillary space
Fixed office, control room, storage, mezzanine; additional build-outs available on request
SITES 2 AND 3 COMING SOON
Email us if you’d like to be kept updated
